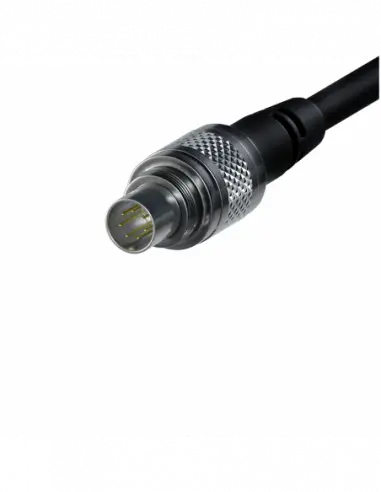

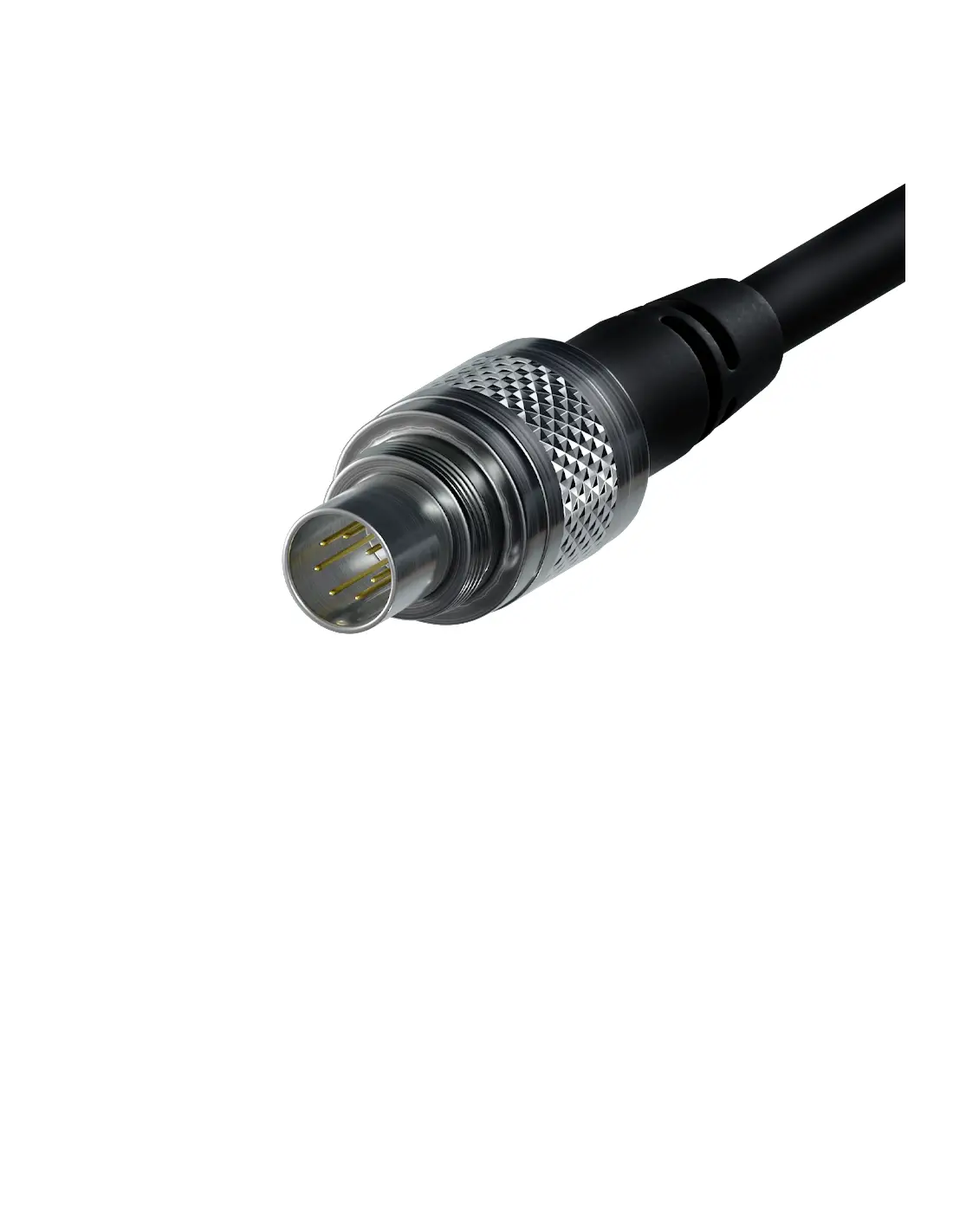

AIM Connection Cable for Solo2 & Solo2 DL

Suitable for Solo2 DL. Not suitable for Solo2 which only has a 5 pin socket.
2 Meter cable
Connection Binder male 712 7 or 8 pin

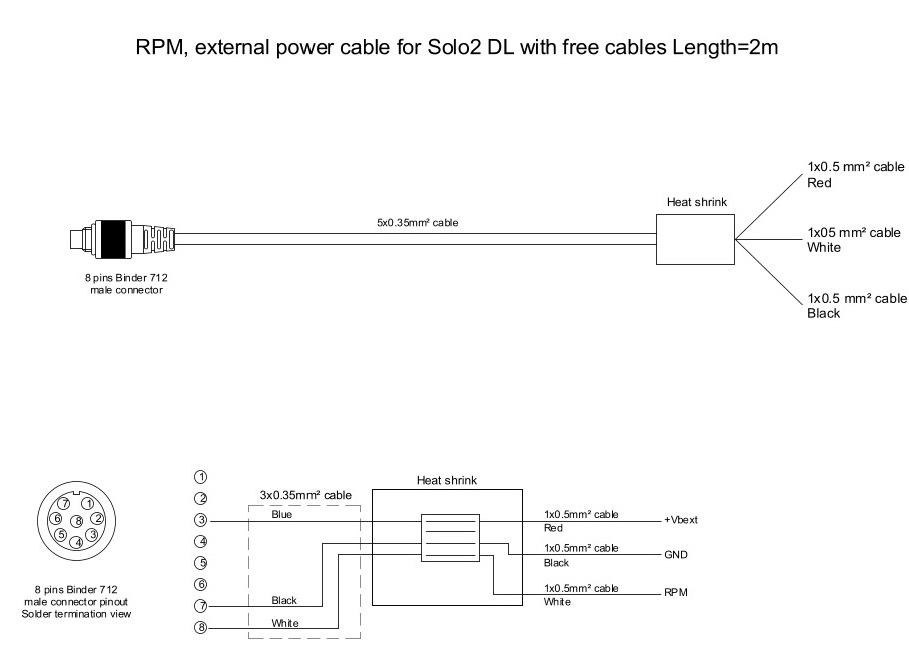

RPM Cable + Power Supply

The Solo 2 and Solo 2 DL can be powered from the outside using a specific power cable, supplied with unconnected wires. These wires can be connected to an external battery or any other 12V source as needed. This cable also has a wire to pick up the rotation signal (RPM) and thus allow the Solo2DL to acquire the speed of rotation of the motor. This cable is suitable for old vehicles not equipped with ECU.

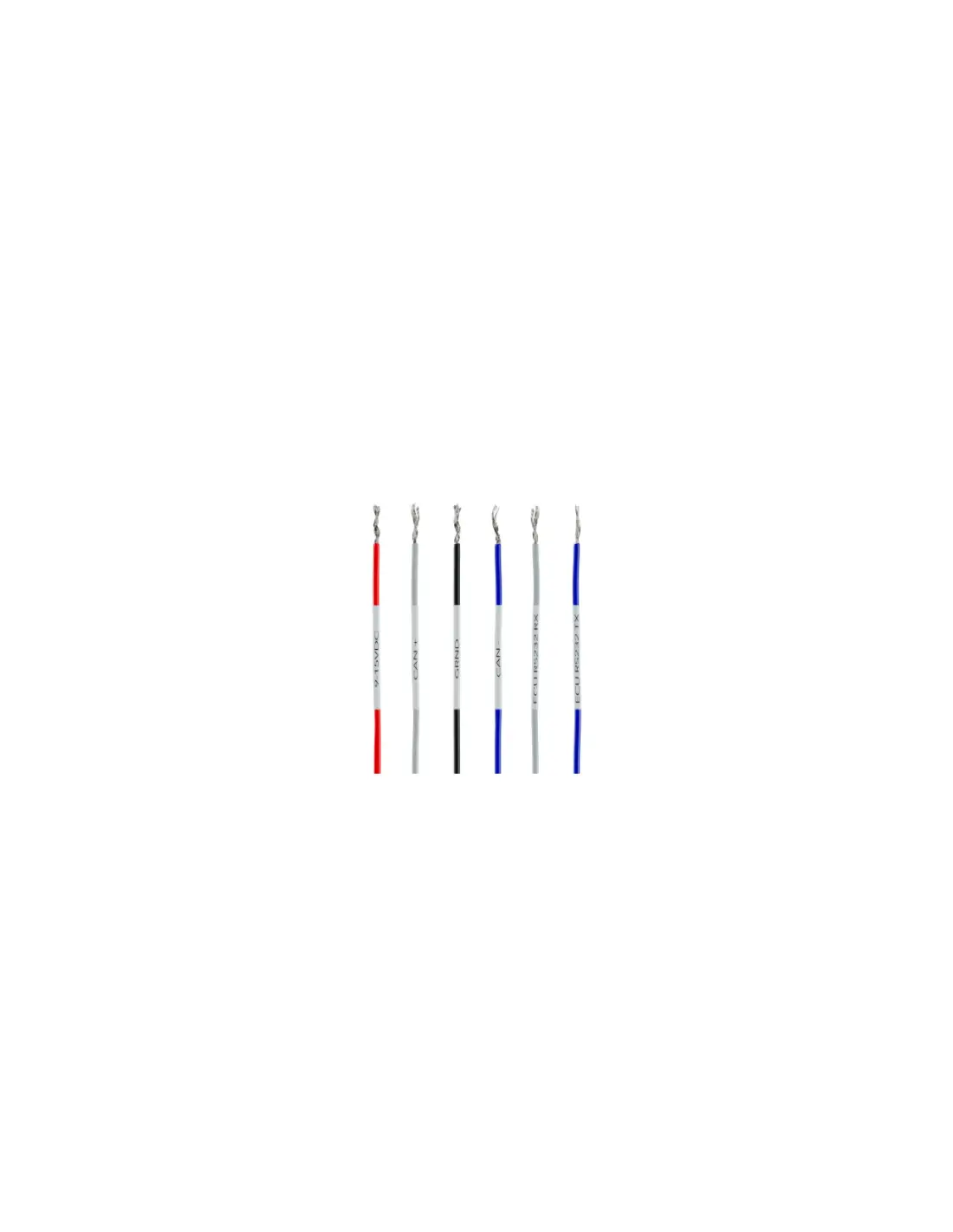

Cable CAN / RS232 and 12V power supply with free terminals.

The Solo2 DL can also be connected to the communication protocol (CAN/ K-Line, RS232) for data acquisition.

Cable CAN / K Line, 12V power supply with OBD2 socket

This cable allows you to connect your SOLO2DL directly to a car equipped with an OBD2 diagnostic socket, thus supplying the SOLO2DL with energy and allowing it to acquire data from your car using the K Line protocols or CAN.
